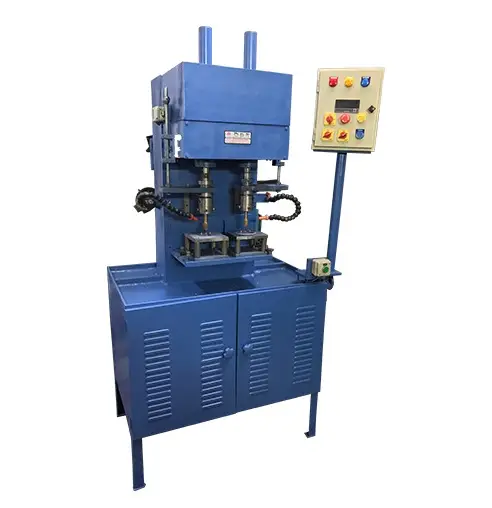

Pitch Control Tapping Machine Double Spindle
( 5 )
60 Rating(s)
specification
| Business Type | Manufacturer, Exporter |
|---|---|
| Capacity | 6-20mm course pitch, 6-40mm fine pitch |
| Type | Vertical - Double Spindle |
| Motor | 2 HP 960 RPM |
| Warranty | 1 year |
| Weight | 350 kgs Approx |
| Standard Accessories | 2Nos. Tap Holders or 2Nos. Die Holders as per Job |
| Country of Origin | INDIA |
- Pitch Control Tapping Machine - Double Spindle Model , Doubles the Production with 2 Spindles , 1 Operator , 1 Motor , 1 Coolant Pump System at the same Platform.
- Machine's all Moving Parts are Hardened and ground Properly for Long Life.
- Limit Switch Mechanism is Provided for safety purpose for reducing Accidents and Taps Breakage.
- Limit Switches are easily adjustable with a stopper for increasing or decreasing the length of thread.
- This Machine provide Precision work with High Production rate as the lead screw works according to the Pitch of the Taps and Round Dies.
- Easy to Operate as after setting a particular the Job , even an Unskilled person can also Work properly.
- This Machine is a specialist for HEX Nuts as Semi and Fully Automatic Models are Also Available Machine Provides GO NO-GO Accuracy.
- Provides High Production With Low maintenance.

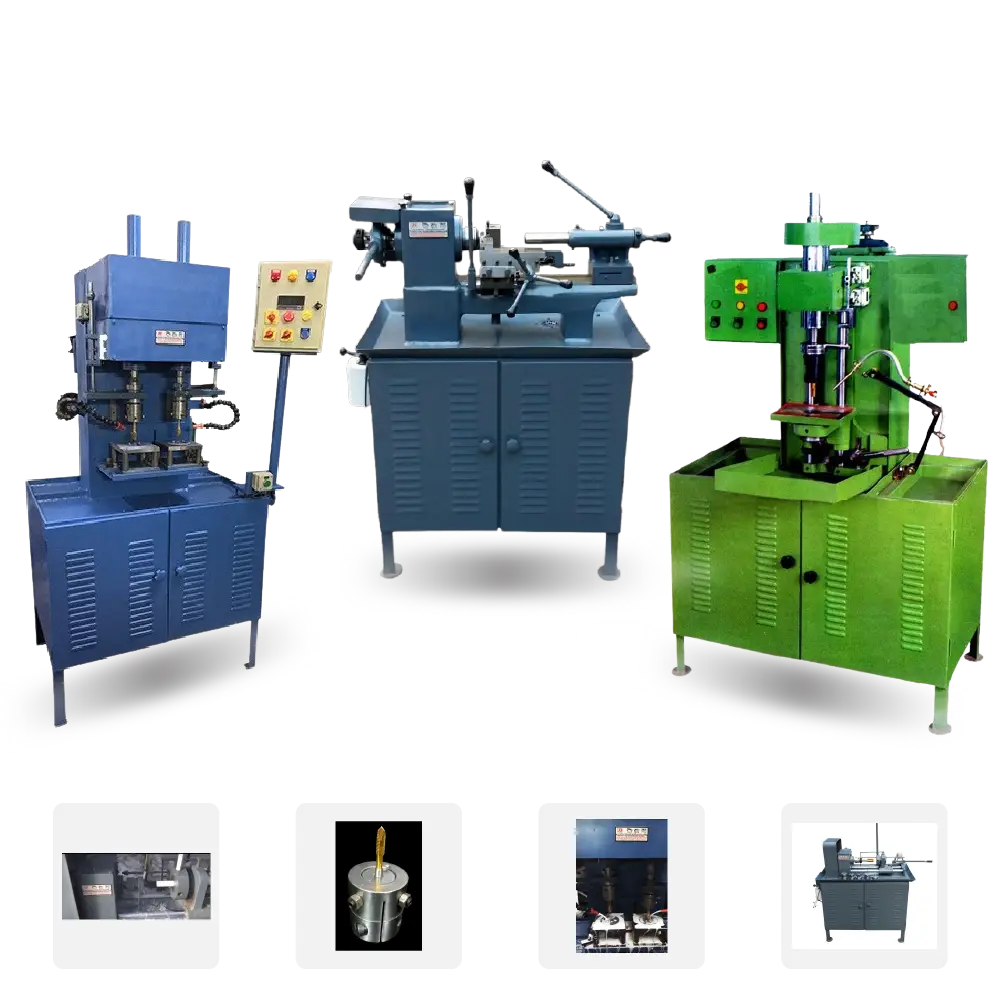

- Comes in Horizontal and Vertical Models.
- Internal and Outer threads are Possible with the appropriate Taps and Round Dies available in the Market.
- 2No. Lead Screw (Fitted) in the Machine , 2No. Floating Tap Holders Or Die Holders are Provided accordingly. Allen Key Set and a spanner is also provided with the machine.
- 2 HP 960 RPM or 1440 RPM Motor is fitted according to the product.
