Tapping Threading Machine

specification

---

Business Type	Manufacturer, Exporter
Capacity	6-20mm course pitch, 6-40mm fine pitch
Type	Horizontal - Single Spindle
Motor	1 HP 960 RPM or 1440 RPM
Warranty	1 year
Weight	180 kgs approx
Standard Accessories	2Nos. Tap Holders or 2Nos. Die Holders as per Job
Country of Origin	INDIA

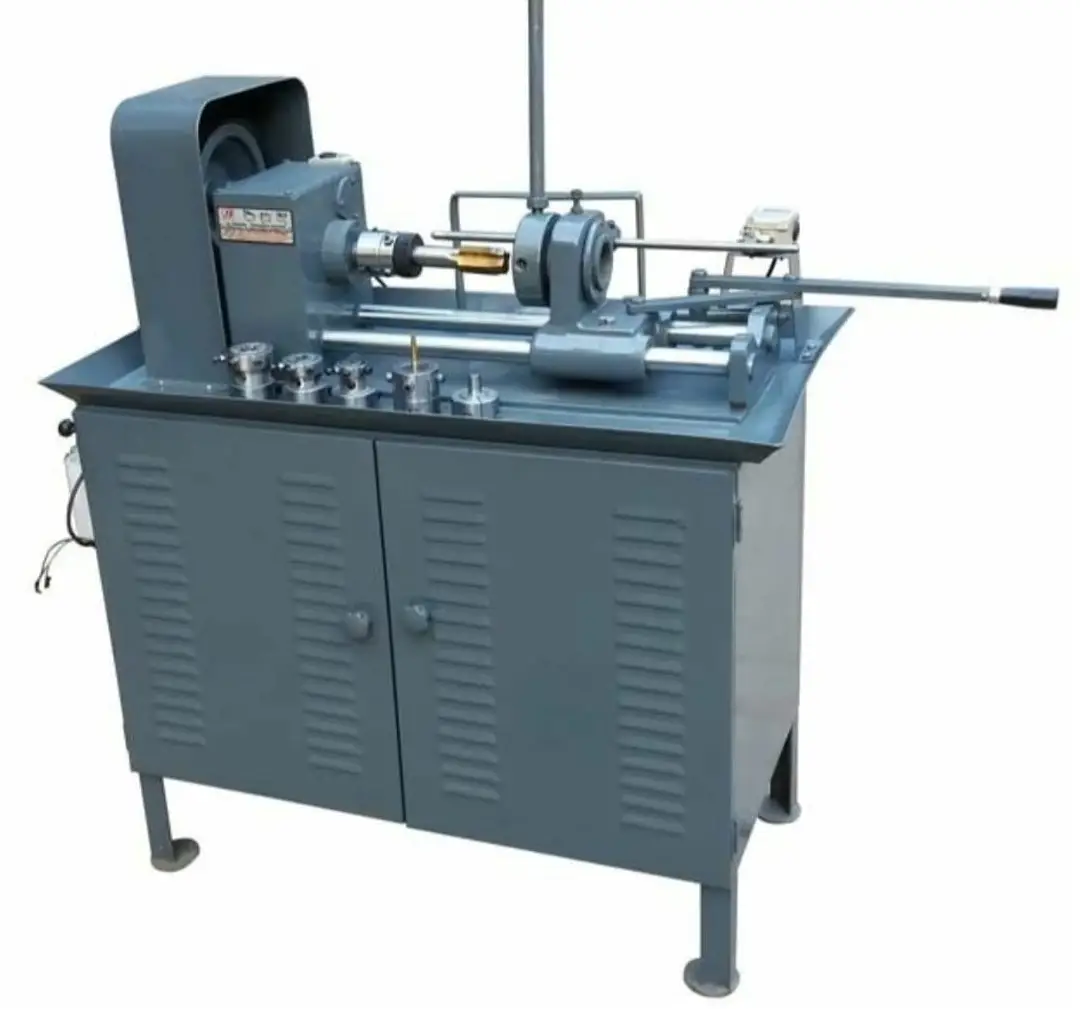

Tapping Threading Machine:-

The Threading machine is fitted on the sheets cabinet and the cast iron base plate. For holding the job traub collets (Type A-25) in its collect fixture. You can cut left & right threading with these machines.

Standard Accessories :

• 3 Phase electrical motor, Reversing switch, Two Speed pulley, V belt
• 2 Nos. die holders (1" & 1 1/2), 2 Nos. Top holders, top holder's spanner.

Range :
Tapping-Threading Machines Model (Horizontal)

• Model TR-20/25 (Capacity 25mm Fine Thread)
• Model TR-20/40 (Capacity 42mm Fine Thread)
• Model TR-20/60 (Capacity 60mm Fine Thread)
• Model TR-20/25 Limit Switch (Capacity 25mm)
• Model TR-20/40 Limit Switch (Capacity 40mm)
• Model Tr-20/60 Limit Switch (Capacity 60 mm)

Optional Accessories (At Extra Cost) :

• Extra
• Die Holders
• Top Holders
• Pulley
• Thru Chuck Fitting
• Jig Fixtures for holding diffcult job
• Coolant Pump
• Collets
• Wooden Box
• Lighting Lamp etc.
